JFC HydroChamberHydroChamber:JFC HydroChamber<< Back to JFC Civils

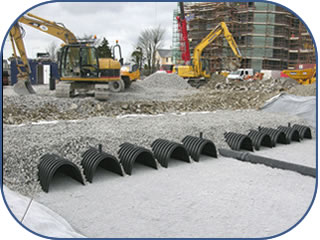

The HydroChamber is an arched chamber system used to provide an underground storage tank for stormwater runoff in attenuation and soak away applications. It can be used under HGV trafficked areas and car park areas as well as non-trafficked areas (e.g. green amenity areas). The system has many advantages such as BBA / WRc certification, superior structural strength, silt management, maintenance and inspection capabilities along with many more benefits.

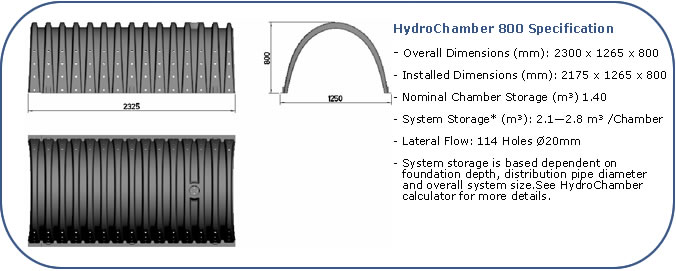

The chambers are manufactured from high density polyethylene and are backfilled with 35/50mm clean washed crushed stone, the corrugated arch shape of the HydroChamber provides excellent structural strength as shown in independently witnessed field tests where the chambers were exposed to loads 3.5 times that expected in service. HydroChambers can be used in three different types of stormwater management systems.

  HydroChamber

  (1) Infiltration / Soak-away System,
(2) Permeable Attenuation Systems,
(3) Impermeable Attenuation Systems.

A site audit will determine the most suitable system.
HydroChamber

HydroChamber

HydroChamberEnquire


Inspection and Maintainence


The HydroChamber has a unique system that minimises any grit / silt entering the system with the use of two upstream catch-pit manholes. Maintenance and inspection can be carried out on the main distribution pipe with standard drain cleaning and inspection equipment. The chamber rows can be camera inspected from the inspection manifold as required.

Features and Benefits

HydroChamber JFC Hydrochamber
  Download Drawing HydroChamber WRc Certification
HydroChamber Superior Structural Integrity
HydroChamber Visual and Camera Inspection
HydroChamber Flushing / Jetting Maintenance
HydroChamber Silt / Grit Management System
HydroChamber Stackable for Storage on Site
HydroChamber Design and Installation &
JFC HydroChamber Manuals
HydroChamber Sizing Calculator
HydroChamber AutoCAD Drawings
HydroChamber Full Technical Assistance
HydroChamber Installation Service

  HydroChamber

  HydroChamber HydroChamber

  Downloads:

HydroChamber Stormwater Management BrochureJFC Corripipe JFC Stormwater

  HydroChamber HydroChamber Design ManualJFC Corripipe JFC Stormwater
  HydroChamber HydroChamber Installation ManualJFC Corripipe JFC Stormwater
  HydroChamber HydroChamber Installation VideolJFC Corripipe JFC Stormwater
  HydroChamber HydroChamber BBA CertifcateJFC Corripipe JFC Stormwater
  HydroChamber HydroChamber WRc ApprovalJFC Corripipe JFC Stormwater
  HydroChamber HydroChamber Excel Sizing CalculatorJFC Corripipe JFC Stormwater
  HydroChamber HydroChamber AutoCad SectionJFC Corripipe JFC Stormwater
